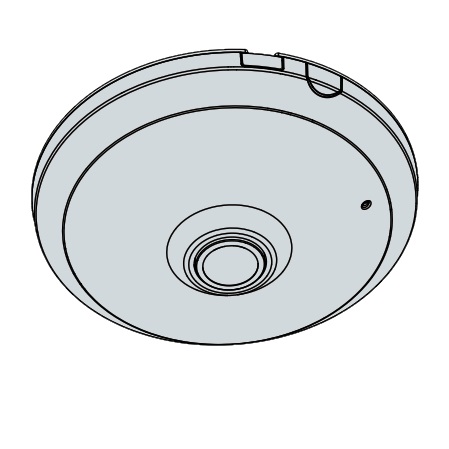

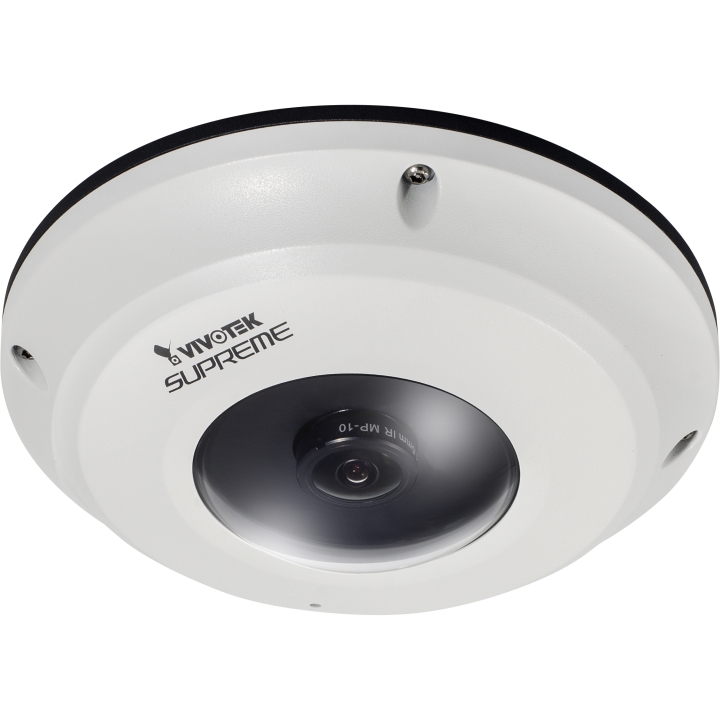

Vivotek FE8174V 5MP Fisheye Fixed Dome Network Camera
The FE8174V is a fish eye camera from Vivotek which provides a 180° panoramic view (wall mount) or 360° surround view (ceiling/floor/table mount).
The camera provides clear images at all times of the day with the use of IR LEDs and can be mounted safely outside with its IP66 rated weatherproof housing.
Vivotek FE8174V User ManualVivotek FE8174V Installation GuideProduct BrochureSurveillance HandbookFisheye Brochure
Product Datasheets
Vivotek FE8174V 5MP Fisheye Fixed Dome Network Camera Datasheet (0.81MB)
- 5 megapixel CMOS sensor
- 30 fps @ 1080p Full HD
- 1.1mm fisheye lens for 180° panoramic view and 360° surround view
- Removable IR cut filter for day & night function
- EN50155 compliance for professional mobile surveillance
- Real-time H.264, MPEG-4 and MJPEG compression (Triple Codec)
- WDR enhancement for unparalleled visibility in extremely bright or dark environments
- Vandal-proof IK10-rated and weather-proof IP66rated housing
- ePTZ for data efficiency
- Built-in 802.3af compliant PoE
- Built-in MicroSD/SDHC/SDXC card slot on-board storage
- Pixel counter for image clarity measurement
- Support local or client side dewarping
| Weight | 545.000000 |
|---|---|
| Image chip size | 1/2.5" |
| Image chip type | Progressive Scan CMOS |
| Image Compression | MJPEG & MPEG-4 & H.264 |
| Audio | Audio input/output (full duplex) |
| Indoor / Outdoor | Indoors only |
| Colour / monochrome | True Day/Night |
| POE built-in | Yes |
| POE Class | Class 2 (3.84-6.49W) |
| Max. Resolution | 1920 X 1920 |
| Min. low-light lux | 0.001 |
| Supply Volts | 12V DC or PoE |
| Lens Mount | fixed focus |
| Lens Focal Length | 1.5mm |
| Viewing Angle | 180° Horizontal Field of View |
| Aspect ratio | 16:9 |
| Megapixels | 5 MP |
| Supplied with lens | Yes |
| Accepts auto-iris lens | Yes |
| Max. Images per second | 25 |
| PSU included | No |
| ONVIF Compatible | Yes |
| Warranty | 1 Year |
| Launch Date | January 2014 |
| Video | |
| Resolution | 720p |
| Colour | White |
| Built-in PIR | No Built-in PIR |
